HM75RSE
Please note that this is the HM75R SE model, headtorch only without rear battery extender.

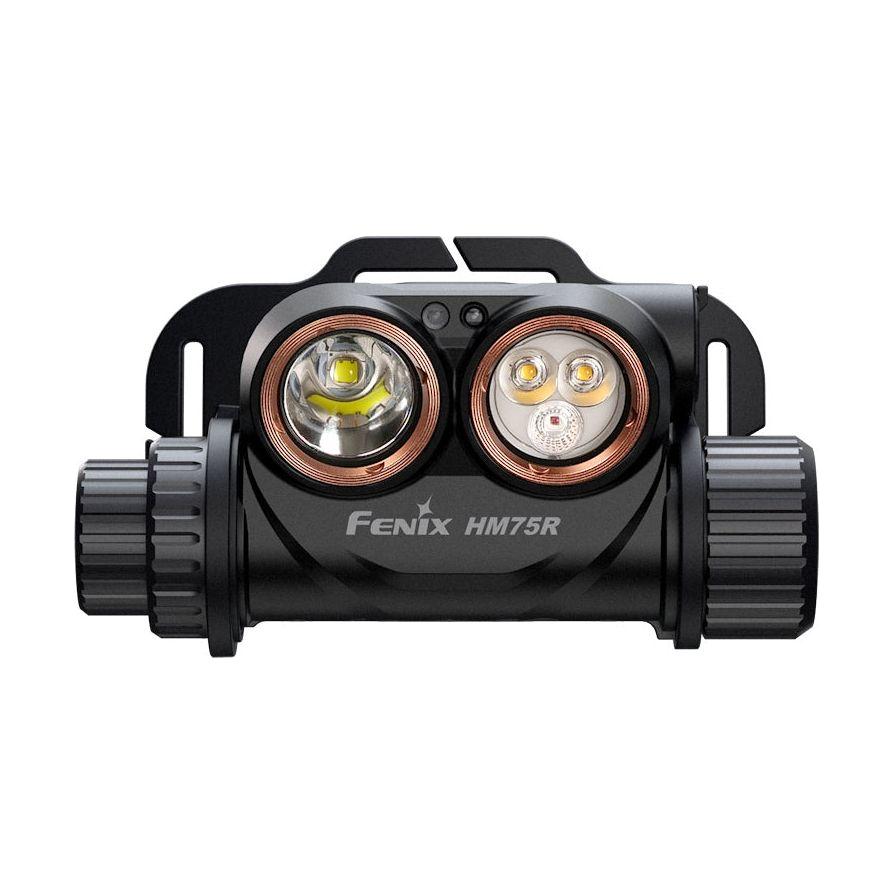

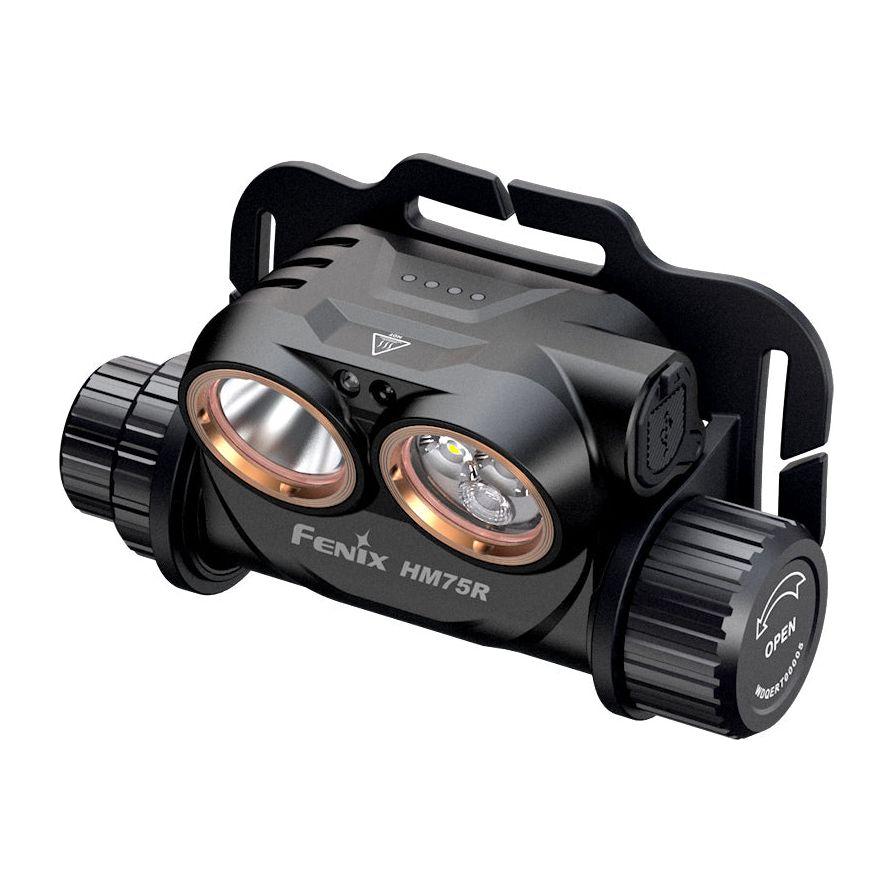

Fenix HM75R SE is a high quality Industrial head torch which features a powerful 1600 lumen main beam, 1000 lumen floodlight and 120 lumen red light in a compact magnesium alloy head unit, powered by a replaceable 3400 mAh, 18650 Li-ion battery, and charged via a USB-C port in the side of the head unit.
HM75R is simple to operate, with a metal rotary switch for mode selection, and a central push button for brightness adjustment.
The light features a proximity sensor to reduce output if it is placed very close to an object or accidentally switched on in a backpack etc.
Fenix HM75R SE headlamp performance:
ARB-L18-3400 internal battery:
Spotlight Mode:
Low: 50 lumens (50 hrs 50 min) - 39m beam
Med: 350 lumens (11 hrs) - 101m beam
High: 800 lumens (3 hrs 30 min) - 158m beam
Turbo: 1600 lumens (1 hr 30 min) - 223m beam
Floodlight mode:
Low: 5 lumens (100 hrs) - 5m beam
Med: 150 lumens (8 hrs) - 25m beam
High: 400 lumens (4 hrs) - 43m beam
Turbo: 1000 lumens (1 hr 50 min) - 60m beam
Red light mode:
Low: 5 lumens (110 hrs) - 4m beam
Med: 30 lumens (32 hrs) - 9m beam
High: 120 lumens (5 hrs 20 min) - 16m beam
Flash: 5 lumens (220 hrs)
Fenix HM75R SE headlamp features:

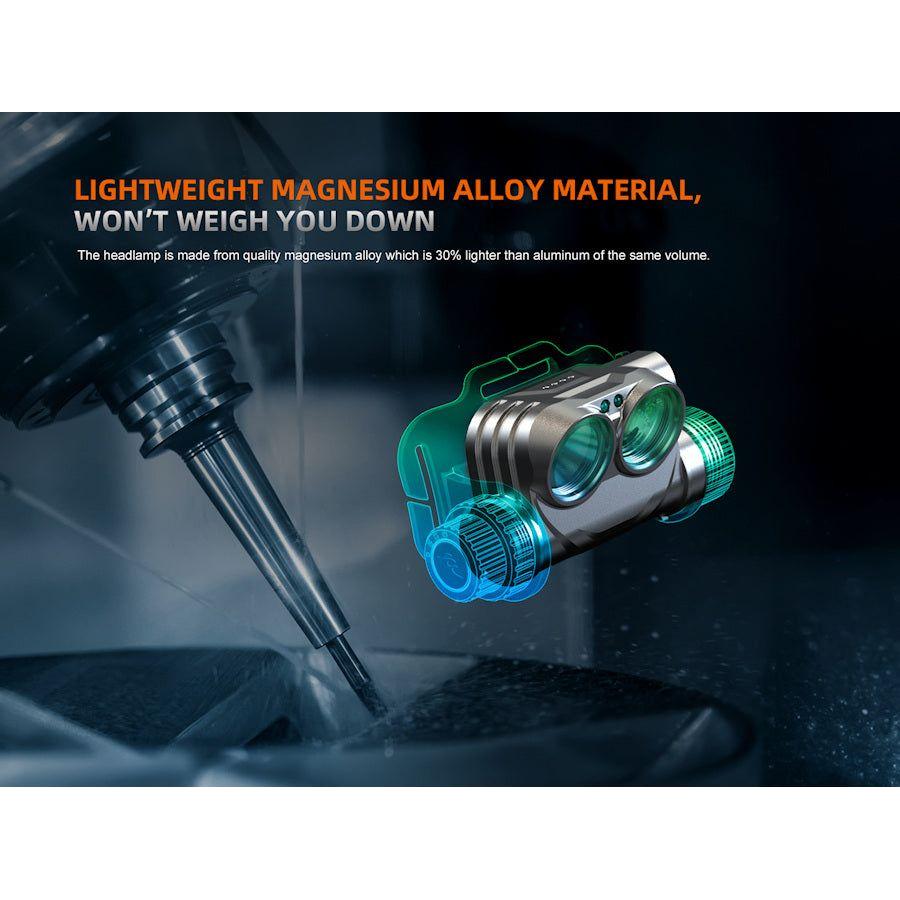

• Light weight magnesium construction. Excellent heat sinking for extended service life and superior performance at high output
• Dual switch operation, 1 x rotary switch + 1 x push button
• Battery level / charging indicator – 4 level indicator giving a clear reading of battery status
• USB-C charging port with inner waterproofing. 4 hr charge time
• Can use 2 x CR123 non rechargeable batteries as a back up power source
• Built-in 50mm proximity distance sensor reduces output to prevent heat damage to headlamp and nearby objects (can be switched off)

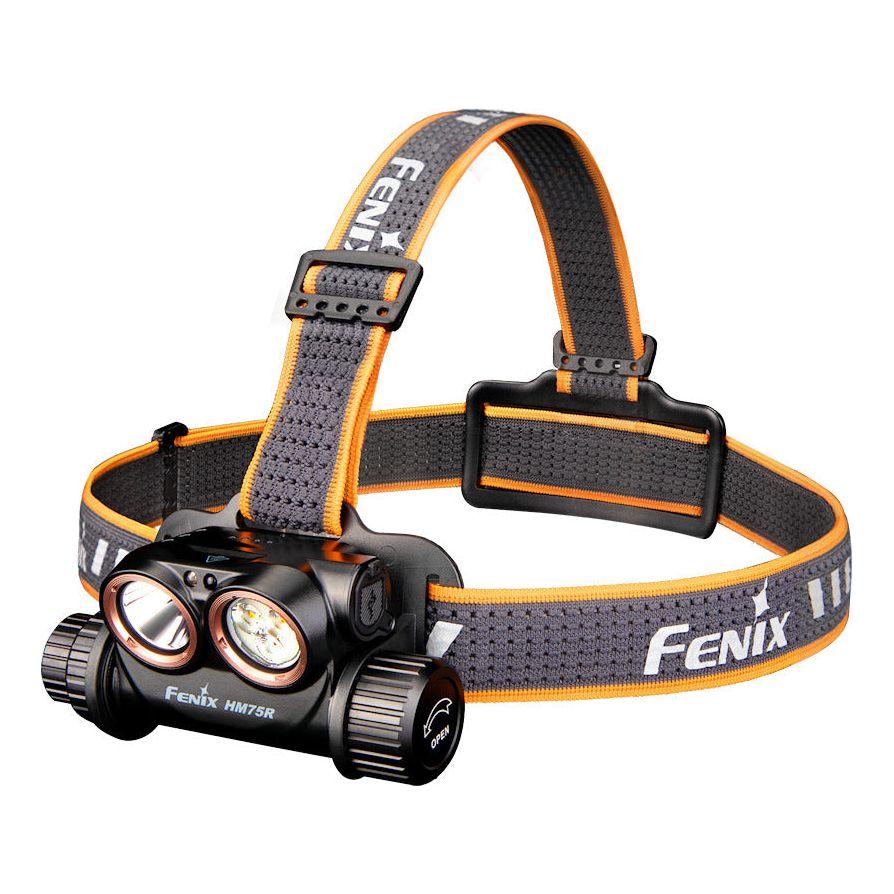

• Breathable, detachable headband with reflective strips
• Tilt adjustable head for perfect beam alignment
• IP68 Rated - Dust and water proof. Submersible up to 2 metres for 4 hours

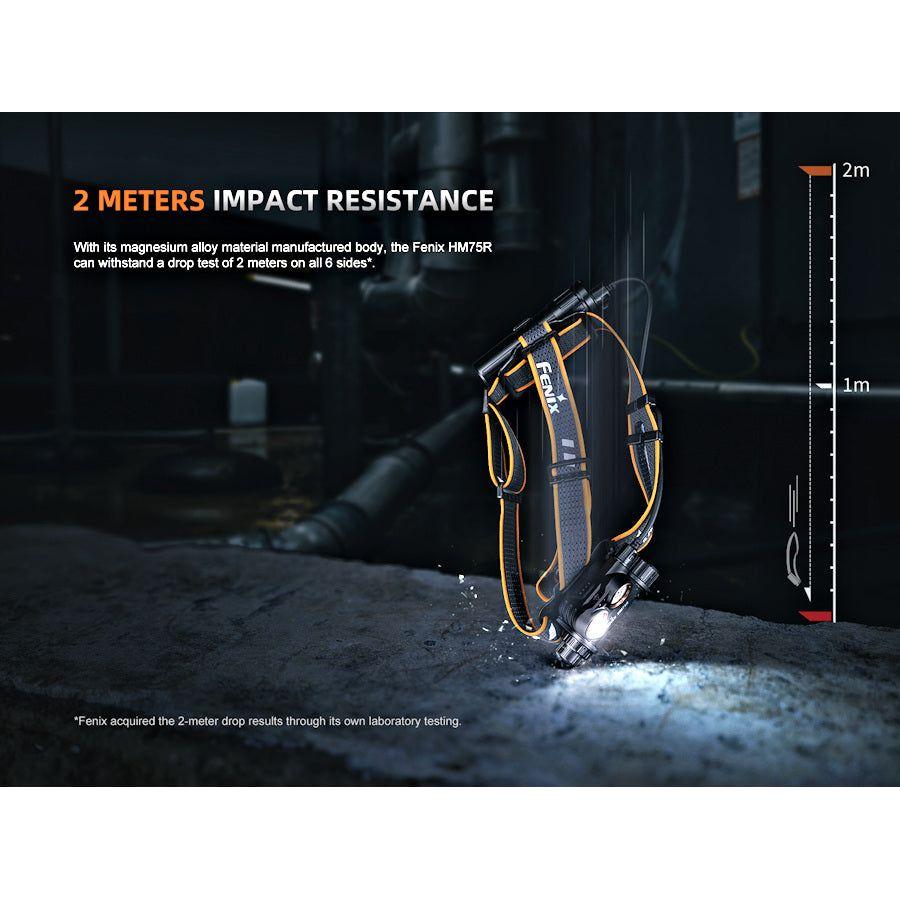

• 2m impact resistant
• Over temperature protection at 60c
| Model | HM75R Standard Edition |
|---|---|
| Battery Type | 18650 |
| Battery Quantity | 1 |
| Additional Battery Type | 2 x CR123 (Do NOT attempt to charge CR123 batteries in this product) |
| LED Type | Luminus SST-40 cool white x 1, Luminus SST-20 neutral white x 2, Osram GRQSSPA1.23 red x 1 |
| Output/Runtime | Please refer to main product description |
| Flashing Modes | Red Flash |
| Max Beam Distance | 223m |
| Reflector | Smooth aluminium reflector (main beam), TIR lenses (flood beam), shallow reflector (red beam) |
| Lens Type | Toughened Ultra - Clear glass lens with anti - reflective coating |
| Switch Type | Rotary mode switch with central push button brightness switch |
| Construction | Durable high strength / light weight magnesium alloy |
| Finish | Premium Type III hard-anodized anti-abrasive finish |
| Tail Stand | No |
| Pocket Clip | No |
| Waterproofing | IP68, 2m depth & dustproof |
| Dimensions/Weight | 91mm (Length) x 41mm (width) x 53.5mm (Height): 169 grams (including battery) |
