Fenix HM70R 1600 Lumens Rechargeable Headtorch

⏳ Sale ends in {timer}

Extended Returns -Returns accepted until 15th January 2024

1 item left

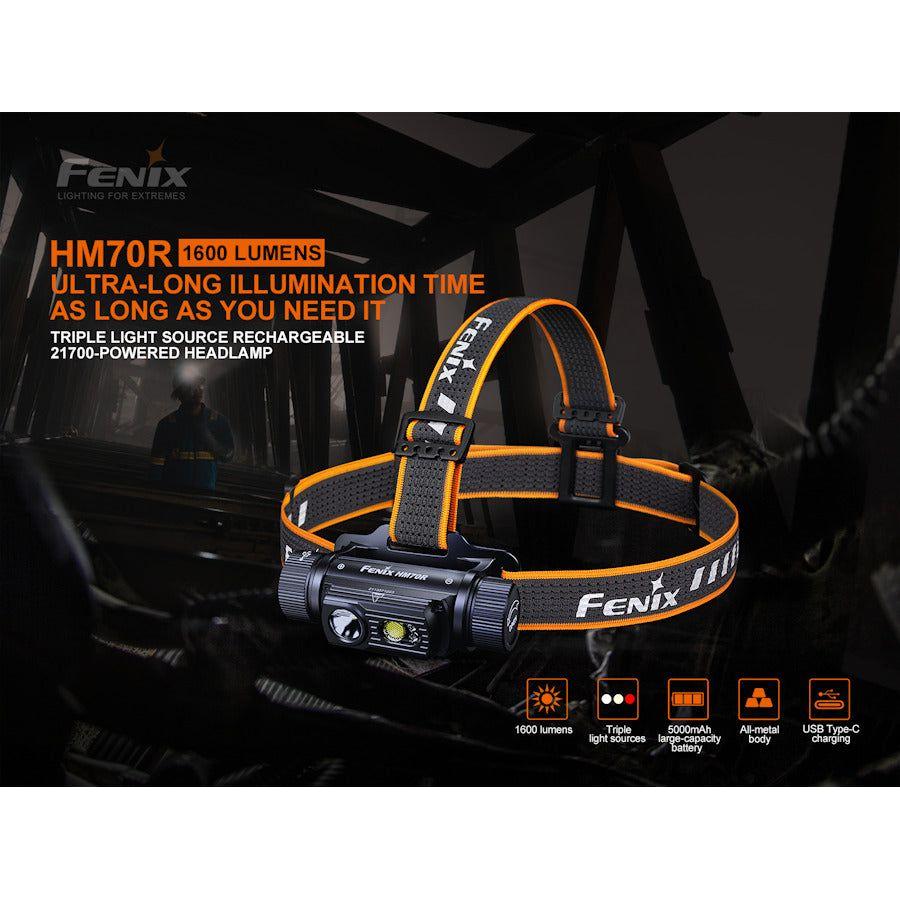

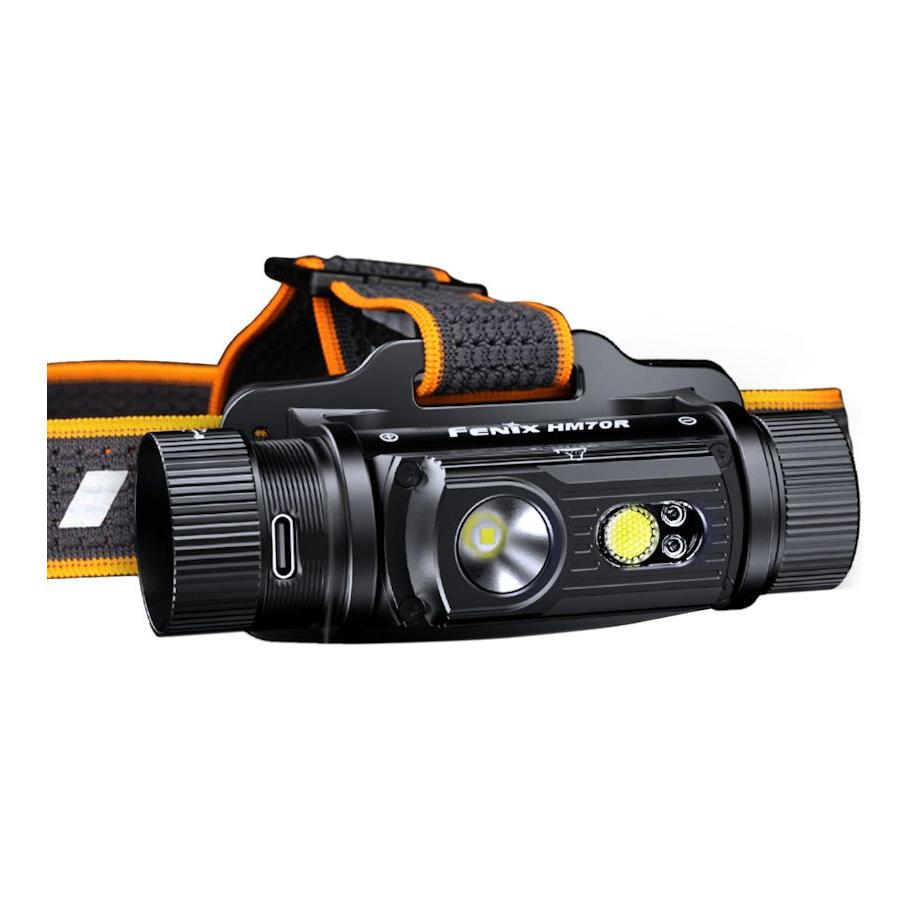

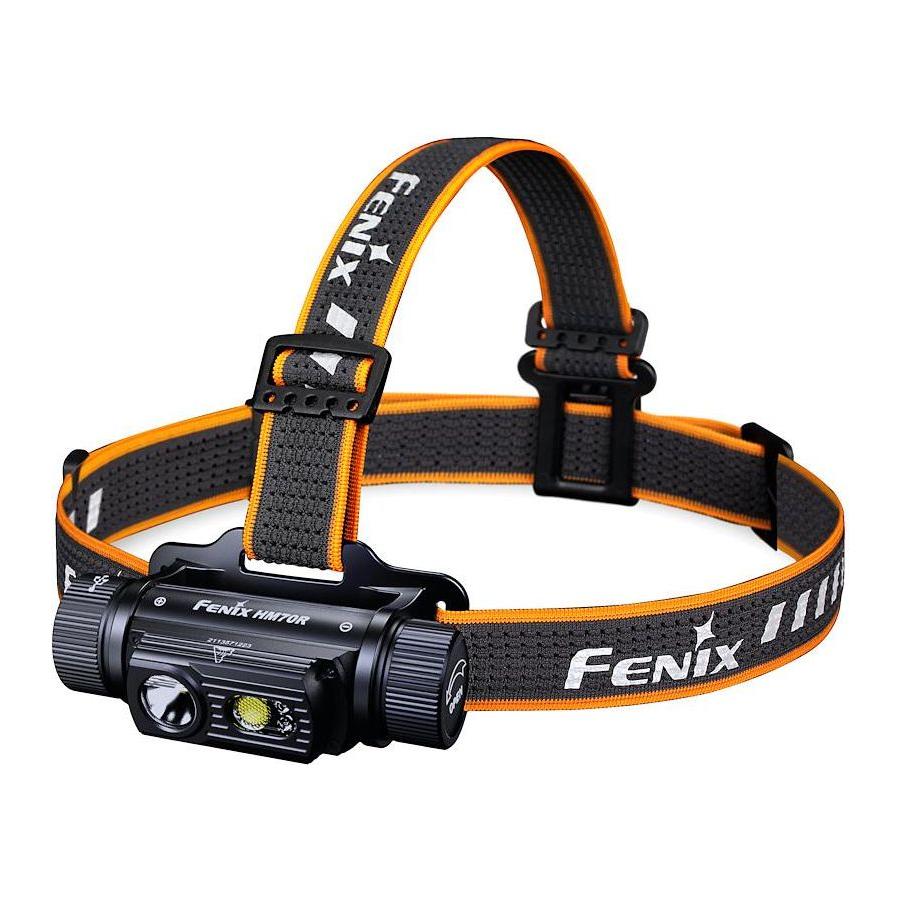

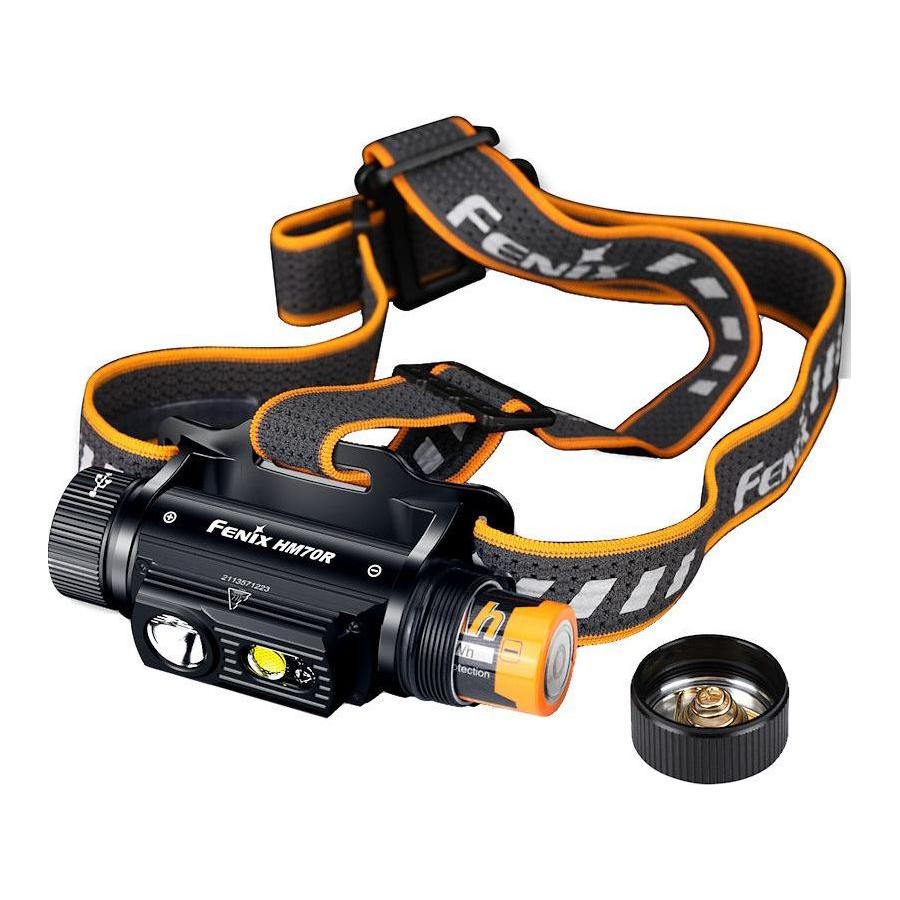

HM70R is an ultra-rugged, all in one aluminium head lamp powered by a large capacity Fenix 21700 rechargeable battery (included).

HM70R is waterproof to 2 metres for an impressive 4 hours. The replaceable battery, LED's and electronics are contained within a precision machined heatsink unibody housing, creating ultimate durability for the toughest working and outdoor environments. Harsh working conditions, caving, rescue, sea fishing and more - HM70R can handle it whilst giving you impressive light output and run time!!

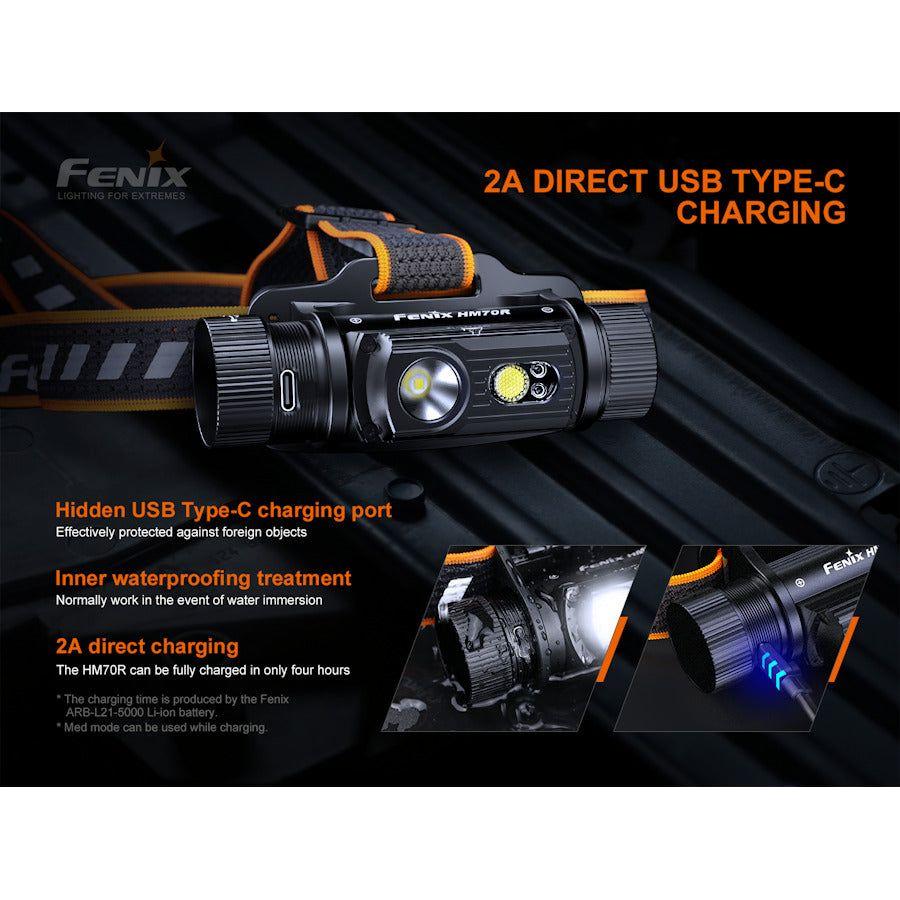

A modern USB-C type socket is fitted under an aluminium screw cover (charging cable supplied) to charge the included 21700 battery in just 4 hours using your 2A mobile phone charger or similar.

Main beam:

The main 1600 lumen LED and reflector provide a balanced combination of  spot and wide area spill light, lighting near and far at the same time. Safe illumination for a multitude of tasks. The main light offers  output levels from 30 to 1600 lumens and punches out to an impressive 186 meters at maximum output.

*  Low - 30 lumens (100 hours) - 26m beam
*  Med - 150 lumens (30 hours) - 53m beam
*  High - 500 lumens (6 hours) - 105m beam
*  Turbo - 1600 lumens (2 hours total) - 186m beam (over heat protected - output will reduce to protect the LED and circuitry at 65c. Max power can be re set once the headlamp cools)

Pure flood beam with no distracting hard edges:

The HM70R V2's pure flood beam offers 2 output levels of  70 and 400 lumens. From a low level close working beam to a smooth, powerful pure flood with no hot spot, the flood light has you covered. Run times vary from a powerful 8 hours working light, to an impressive 2 days at 70 lumens!

* Med - 70 lumens (48 hours) - 16m beam
* High - 400 lumens (8 hours) - 38m beam

Red beam:

Protect your night vision or set up an emergency signal with the low level red beam.

Red - 5 lumens (400 hours) - 5m beam
Red SOS - 5 lumens (800 hours - 33 days !) - 5m beam

*** Please note that beams cannot be operated together ***

Fenix HM70R headlamp other features:

* Digitally regulated - maintains constant output
* Mode memory - remembers last used lighting level
* LED battery level / charging indicator behind silicon button cover
* Can use an 18650 battery (ALF-18 battery adapter sold seperately)
* Inner waterproof charging socket

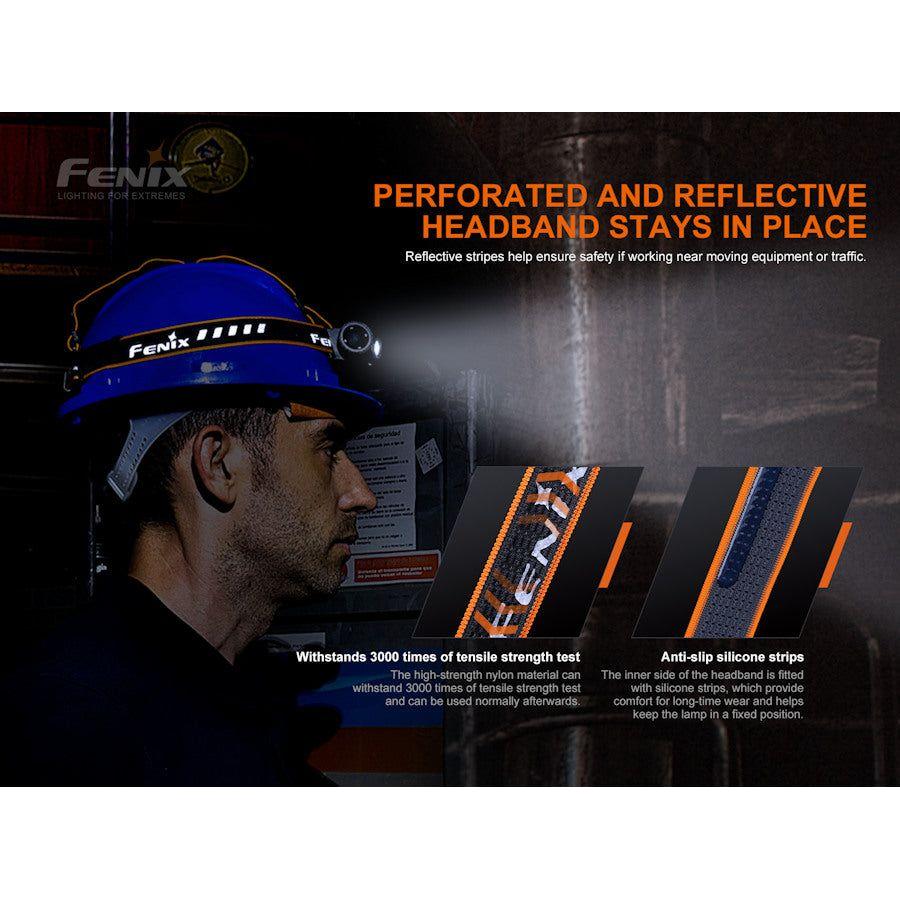

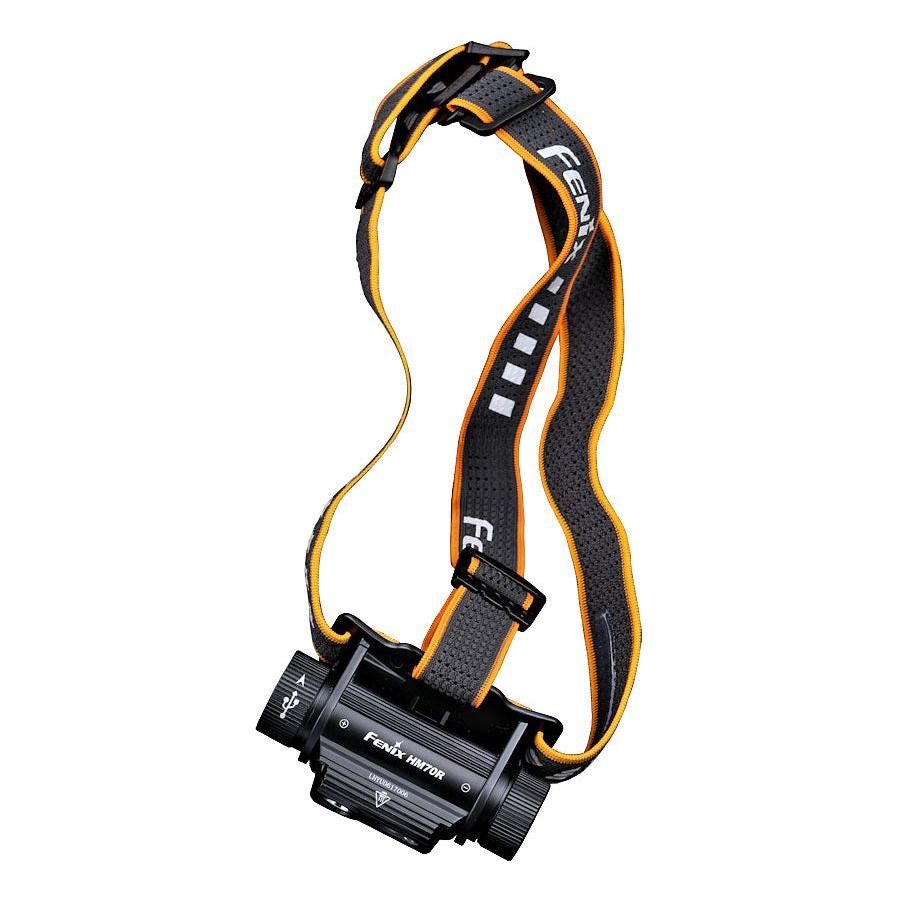

* Perforated, breathable comfort headband
* Reflective strips on headband for added visibility
* 2m impact tested for durability
* 180 degree tilt mechanism for ideal beam alignment
* Beam lock out to prevent accidental activation during transport

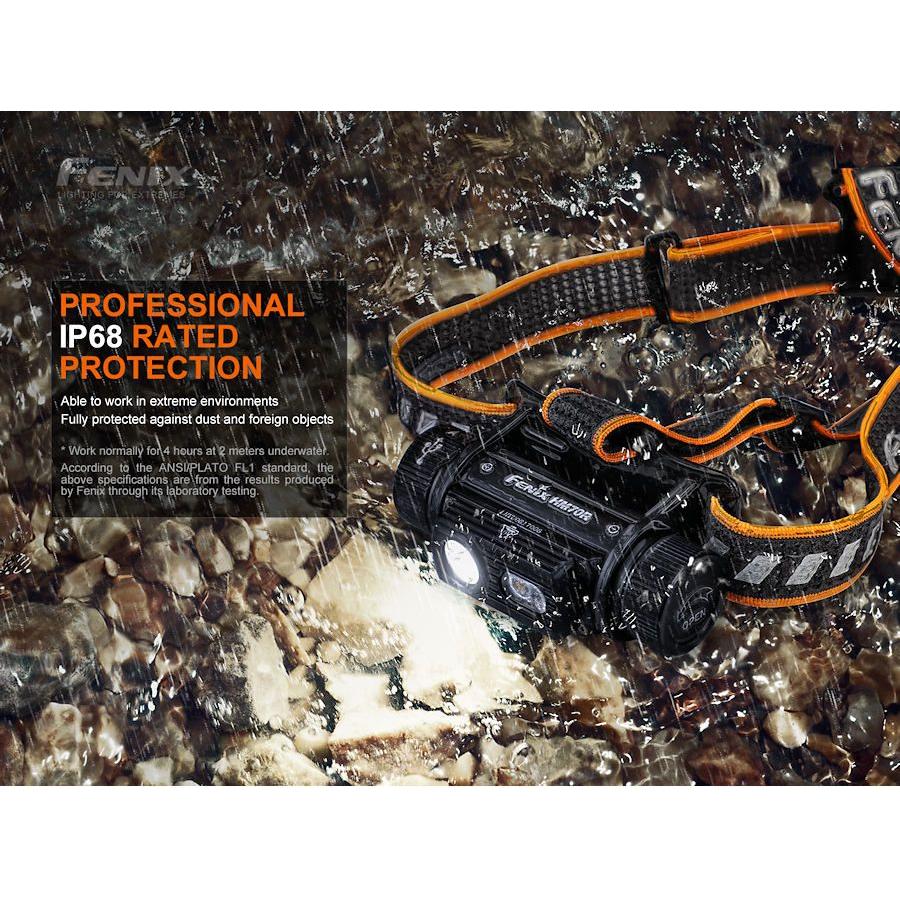

* IP68 water proof (2m for 4 hours) for the toughest conditions

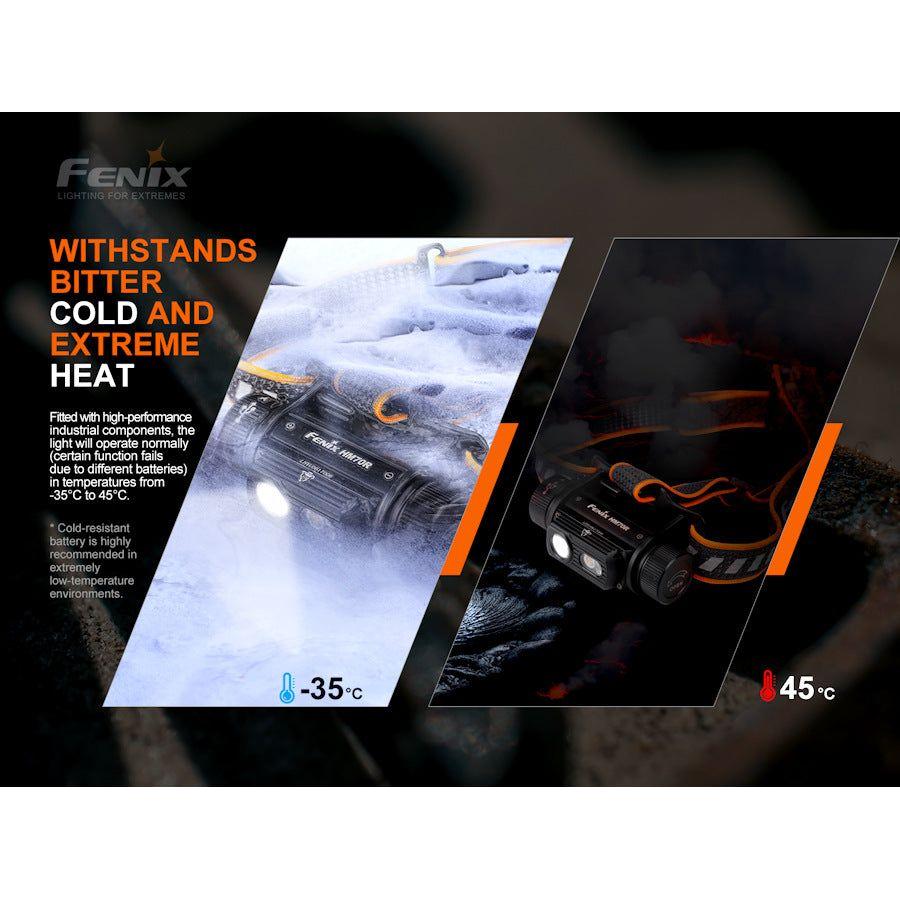

* Wide operating temperature of -35 to + 45 Deg C
* Fits Fenix ALG-03 V2 helmet mount for hard hats and caving helmets

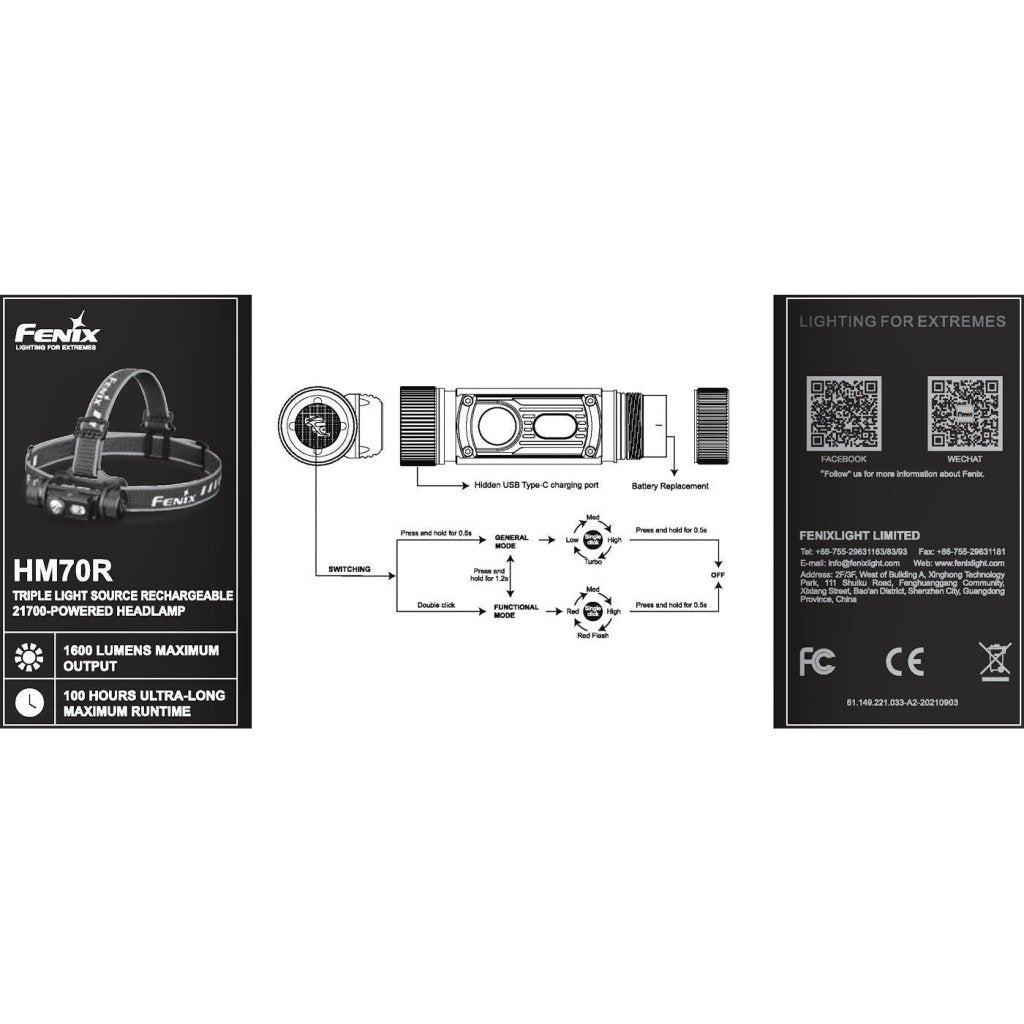

Operation:

On / Off:

Press and hold the switch for 0.5 seconds to turn the lamp on / off

Mode Switching:

*  With the lamp switched off, press and hold the switch for 0.5 seconds to enter General Mode (Main Beam) or double click the switch to enter Functional Mode (Flood and Red LED's).
*  From the on position, hold down the switch for 1.2 seconds to switch between modes.

Output Selection:

*  In General Mode, single click the switch to cycle through Low - Med - High and Turbo modes.
*  In Functional Mode, single click the switch to cycle through Red - Medium Flood - High Flood and Red Flash.

Lockout Mode:

Lock:

When the lamp is switched off, press and hold the switch for 3 seconds. The lamp will blink red 3 times to indicate locked status.

Unlock:

When the lamp is locked, press and hold the switch for 3 seconds. The lamp will blink red 3 times then enter red light mode.

Status

If the lamp is locked, it will blink red 3 times after pressing the switch to indicate locked status.

The Fenix HM70R tough LED headlamp is perfect for your most arduous pursuits from best caving headlamp, hunting headlamp, search and rescue, tough work and much more. This headlamp offers all the hallmarks of premium Fenix build quality with no corners cut, including metal heat dissipating head (much more expensive to produce than plastic headlamp bodies) and best electronics and LED's available.

MODEL HM70R
BATTERY TYPE 21700
BATTERY QUANTITY 1
ADDITIONAL BATTERY TYPE 1 x 18650 Battery (Using Fenix ALF-18 battery holder (not supplied)
LED TYPE Luminus SST40, Cree XP-G2 Neutral White and Everlight 2835 red light LEDs.
OUTPUT/RUNTIME Spotlight: Turbo: 1600 Lumens, (2hrs), High: 500 Lumens, (6hrs), Med: 150 Lumens, (30hrs), Low: 30 Lumens, (100hrs)

Functional Mode: High Flood: 400 Lumens, (8hrs), Med Flood: 70 Lumens, (48hrs), Red: 5 Lumens, (400hrs), Red Flash: 5 Lumens (800hrs)
FLASHING MODES Red Flash
MAX BEAM DISTANCE 186m
REFLECTOR Smooth aluminium reflector
LENS TYPE Toughened Ultra - Clear glass lens with anti - reflective coating
SWITCH TYPE Side on-off-mode switch
CONSTRUCTION A6061-T6 aircraft grade aluminum
FINISH Premium Type III hard-anodized anti-abrasive finish
TAIL STAND No
POCKET CLIP No
WATERPROOFING IP68, 2m depth & dustproof
DIMENSIONS/WEIGHT 94.5mm (Length) x 51mm (Width) x 46mm (Height)

206grams (incl battery & headband)
FURTHER INFO N/A
