Fenix ARE-D2 USB Smart Multi Charger / Power Bank

⏳ Sale ends in {timer}

1 item left

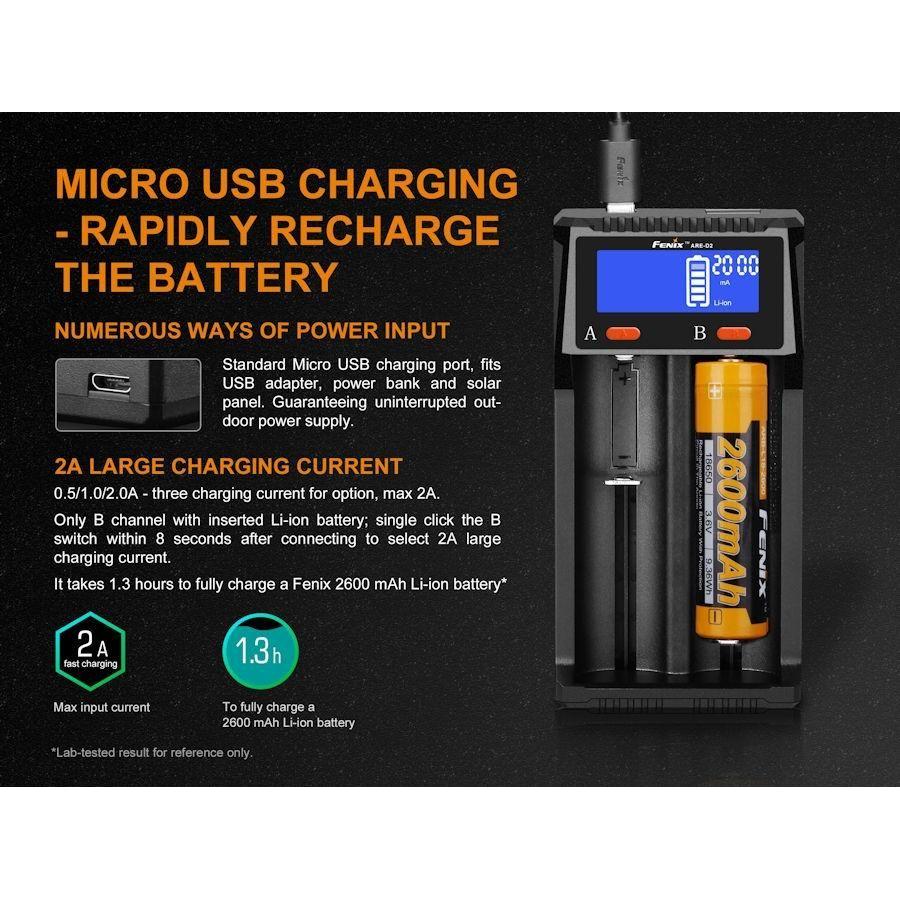

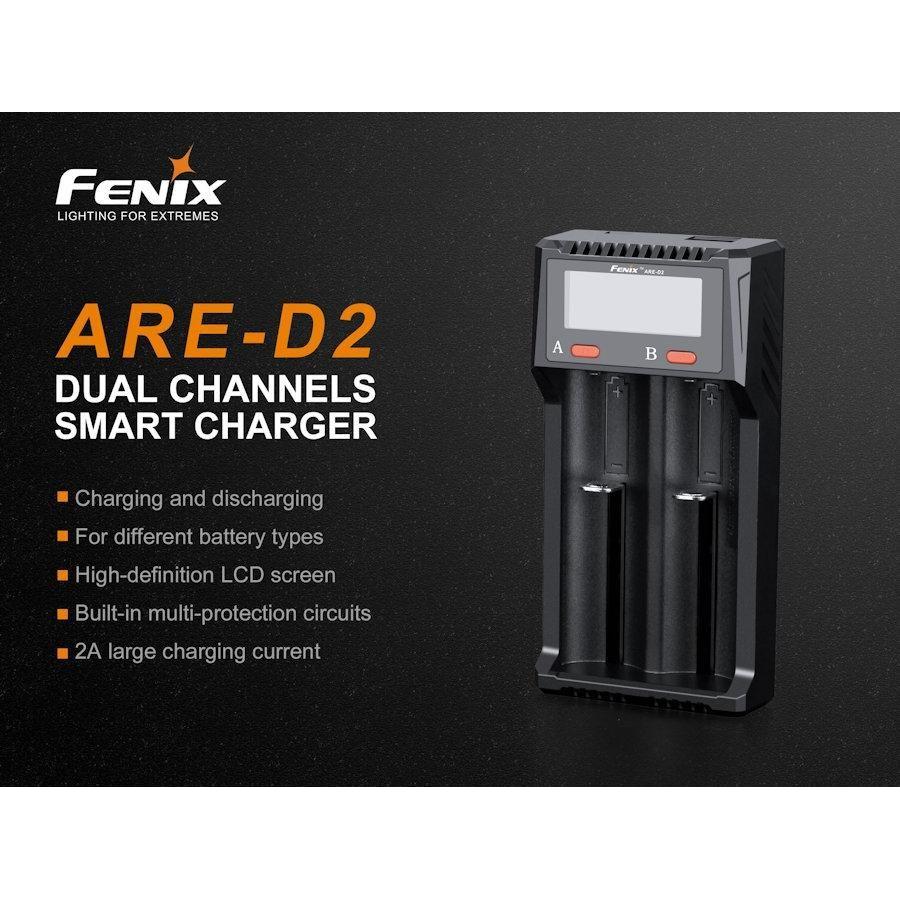

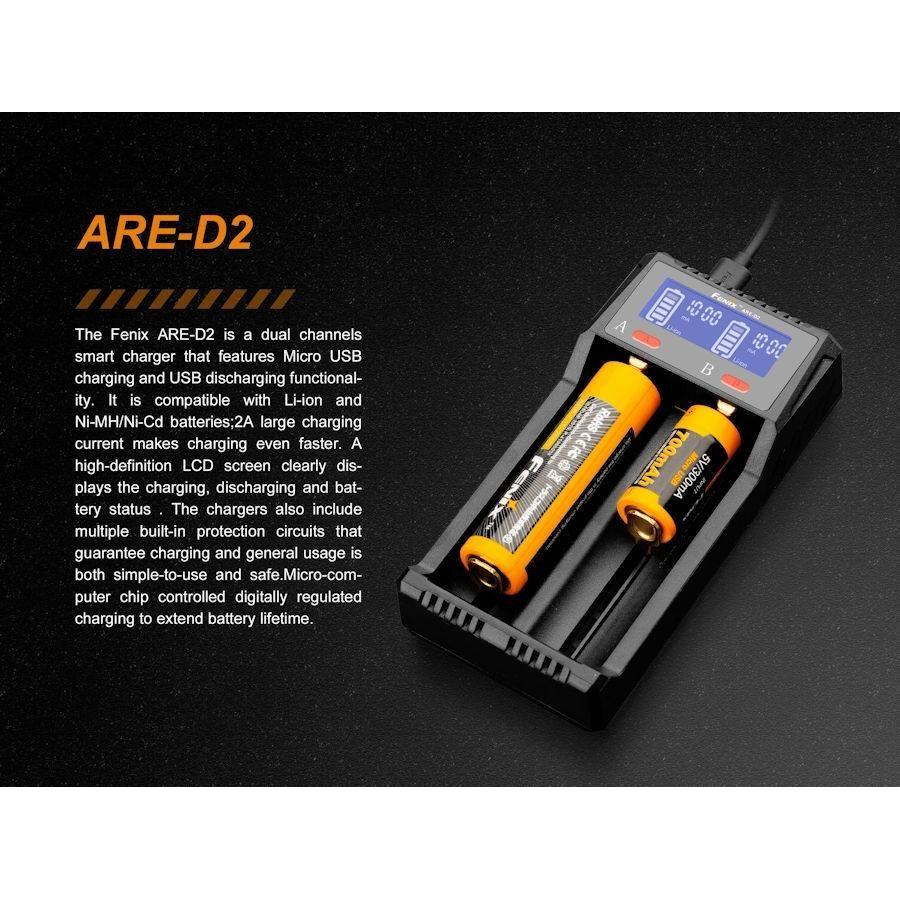

Fenix ARE-D2 is a high quality dual channel USB smart multi-charger featuring a digital display and compatibility with both Ni-MH and Li-ion battery types. The charger is fully protected against short circuit, over current, over voltage and reverse polarity assuring the utmost safety and taking the best possible care of your batteries. The supplied cable plugs into the charger via micro USB and features a standard USB plug at the other end to plug into your existing phone charger etc for mains power, or into a power bank for portable power. Max charging current is 2A in the right channel and 1A in the left channel for Li-ion batteries. If both channels are in use max current will be 1A per channel.

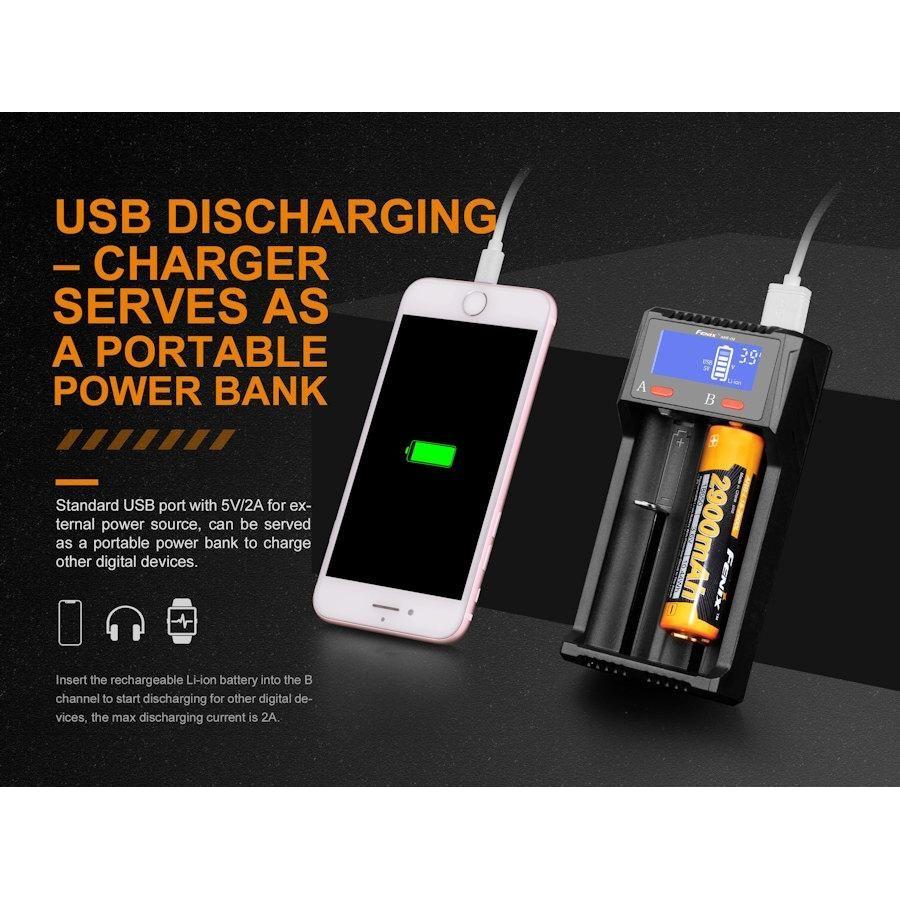

ARE-D2 can also be used as a power bank, simply insert a Li-ion battery into the right hand bay (left bay does not support power bank function) and connect the supplied cable into the standard USB port on the charger, then plug the Micro USB end of the cable into to the device to be charged. (You can also use USB to Lightning etc cables to charge other devices)
ARE-D2 also features a low current discharge mode of approximately 100mA for trickle charging.

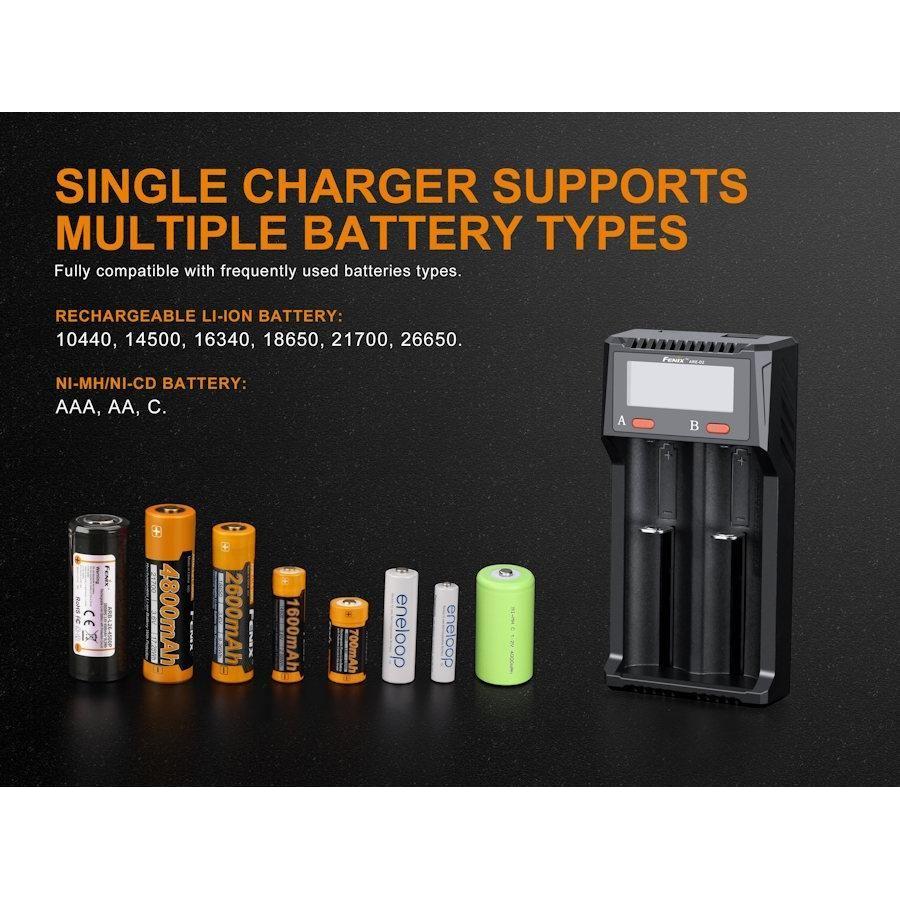

Compatible batteries:
Li-ion: 10440, 14500, 16340, 18650, 21700, 26650
Ni-MH: AAA, AA, C

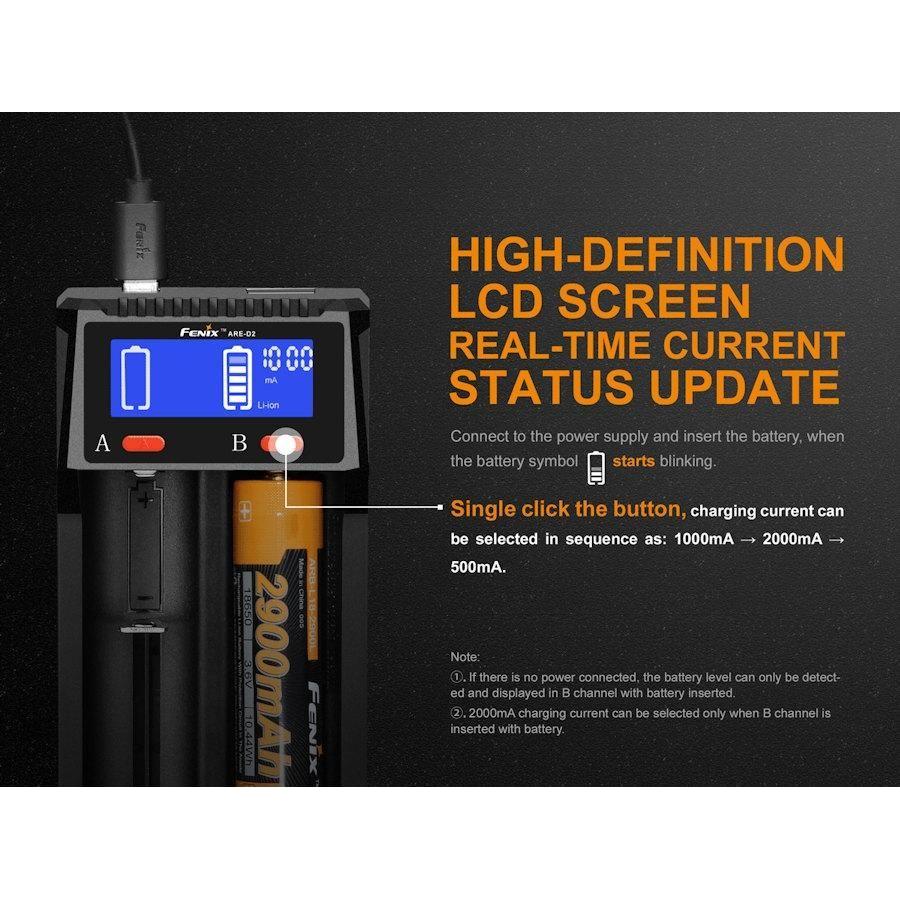

  • Digital high definition display shows: Battery type, battery voltage, charge status, charging current, charging time, charging capacity - display cycled using the button below the LCD display.
  • Input voltage: DC - 5.0V 2A
  • Output voltage: Li-ion, 4.2v at 0.5 / 1.0 / (2.0A right channel only), Ni-MH 1.5V at 0.5 / 1A (Single click display button to change charge current during first 8 seconds of operation)
  • Operating temperature: -20 to +50 degrees C
  • Micro computer controlled - extends battery life
  • Compliance: CE, FCC, RoHS, WEEE
  • Trickle charges Ni-MH batteries at end of cycle to achieve full charge
  • Short circuit, over current, over voltage and reverse polarity protected
  • Dimensions: 123 x 62 x 30mm. Weight 92g

  • Charging status indicator bars:
  • One flashing, 4 off = less than 20%
  • One constant-on, one flashing, 3 off = 21-40%
  • Two constant-on, one flashing, 2 off = 41-60%
  • Three constant-on, one flashing, 1 off = 61-80%
  • Four constant-on, one flashing = more than 80%
  • Five constant-on = fully charged
  • CHARGER TYPE Ni-mH and Li-ion Multicharger
    CELL TYPE Lithium-ion: 26650, 21700, 18650, 16340, 14500, 10440 - Ni-MH: AA, AAA, C
    LED INDICATOR LCD Digital Display showing: Battery Type, Charging Current, Battery Voltage, Charging Capacity, Charging Time
    CAUTION Do not attempt to charge non-rechargeable batteries, may cause fire or explosion
    FURTHER INFO Li-ion batteries should never be left charging unattended under any circumstances. The user must have knowledge of how to charge and discharge Li-ion batteries before using them. Always use a charger that is designed to recharge the particular Li-ion cell that you wish to recharge. Never use a DC adapter to charge Li-ion batteries. We are NOT responsible for any damage that is caused by the misuse of Li-ion batteries. We recommend charging any Li-ion cell on a metal or other non-flammable surface.
